Reference

GFE Graph

The GFE database (gfe-db) represents the relationships between GFEs, features, sequences and other types of data. The new schema is centered around the GFE node and makes the curation and database versioning of WHO designations or WHO labels an optional annotation of GFEs.

GFE nodes

Description

Each node represents a distinct GFE object. For example, a GFE with gfe_name="HLA-Aw2-1-1-1-1-4-1-1-1-2-1-1-1-1-1-1-4" corresponds to a full sequence and also 17 features: - FIVE_PRIME_UTR - EXON (1-8) - INTRON (1-7) - THREE_PRIME_UTR

Properties

{
  "gfe_name": "HLA-Aw99-8-363-912-781-2901-128-581-151-324-198-9-316-80-508-43-30",
  "locus": "HLA-A"
}

Property	Example	Data Type	Description
`gfe_name`	HLA-Aw99-8-363-912-781-2901-128-581-151-324-198-9-316-80-508-43-30	string	GFE name
`locus`	HLA-A	string	Position of the gene on the chromosome

Feature nodes

Description

A feature is a tuple of: locus, term and rank. A locus is “anything in HUGO”, and a term is “anything in sequence ontology”.

Properties

{
  "accession": 99,
  "locus": "HLA-A",
  "rank": 1,
  "term": "FIVE_PRIME_UTR"
}

Property	Example	Data Type	Description
`accession`	2901	string	Relatively stable unique record identifier for a sequence
`locus`	HLA-A	string	Position of the gene on the chromosome
`rank`	7	string	Ordinal number describing the position of the Feature sequence on the allele
`term`	FIVE_PRIME_UTR	string	Label describing the type of Feature; One of FIVE_PRIME_UTR, EXON, INTRON, THREE_PRIME_UTR

Sequence nodes

Description

The nucleotide sequence corresponding to the GFE.

Properties

{
  "gfe_name": "HLA-Cw393-14-261-132-1610-454-45-532-107-272-205-3-264-71-398-4-621",
  "length": 3918,
  "locus": "HLA-C",
  "seq_id": 27670532806245477286153332635897,
  "sequence": "TTATTTTGCTGGATGTAGTTTAATATTACCTGAGGTGAGGTAAGGTA..."
}

Property	Example	Data Type	Description
`gfe_name`	HLA-Cw393-14-261-132-1610-454-45-532-107-272-205-3-264-71-398-4-621	string	Gene Feature Enumeration name
`length`	3918	integer	Length of nucleotide sequence
`locus`	HLA-C	string	Position of the gene on the chromosome
`seq_id`	27670532806245477286153332635897	integer	Compressed UUID based on MD5 hash of sequence (used for faster indexing)
`sequence`	TTATTTTGCTGGATGTAGTTTAATATTACCTGAGGTGAGGTAAGGTA…	string	Full nucleotide sequence

IPD_Allele nodes

Note

IPD_Allele and IPD_ACC nodes replace the previous WHO nodes. Documentation is in progress.

Description

Documentation in progress

Properties

{
  // Documentation in progress
}

Property	Example	Data Type	Description

IPD_ACC nodes

Note

IPD_Allele and IPD_ACC nodes replace the previous WHO nodes. Documentation is in progress.

Description

Documentation in progress

Properties

{
  // Documentation in progress
}

Property	Example	Data Type	Description

Submitter nodes

Description

Describes the submitter of a GFE node.

Properties

{
  "email": "<email>",
  "institution": "<institution name>",
  "name": "<name>"
}

Property	Example	Data Type	Description
`email`	user@cibmtr.org	string	Submitter’s email
`institution`	CIBMTR	integer	Submitter’s institution
`name`	first name last name	string	Submitter’s full name

HAS_FEATURE edges

Description

Links a GFE node to a Feature node.

Properties

{
  // No properties
}

HAS_SEQUENCE edges

Description

Links a GFE node to the full Sequence node.

Properties

{
  // No properties
}

HAS_IPD_Allele edges

Description

Links a GFE node to the IPD_Allele node.

Properties

{
  "releases": [3470, 3460]
}

Property	Example	Data Type	Description
`releases`	[3470, 3460]	array[integer]	Release versions containing the relationship

HAS_IPD_Allele edges

Description

Links an IPD_Allele node to the IPD_ACC node.

Properties

{
  "releases": 3470
}

Property	Example	Data Type	Description
`releases`	3470	integer	Release versions containing the relationship

SUBMITTED edges

Description

Links the Submitter node to the GFE node.

Properties

{
  "submit_date": "2022-02-17"
}

Property	Example	Data Type	Description
`submit_date`	2022-02-17	datetime string	Date of submission

Breaking down a GFE

Note

This section discusses the WHO and IMGT_HLA nodes which have been deprecated.

The representation of a single GFE, for example corresponding to the allele HLA-A*01:01:01:01 can be understood from the graph.

The GFE node points to a WHO node as one of possibly many annotations. With this schema it is possible to analyze GFEs that do not have an WHO label associated with it.

To see the how a GFE expands to its constituent components, the following query returns the corresponding features associated with the GFE referred to by the WHO allele HLA-A*01:03:01:01.

MATCH (:WHO {name:'HLA-A*01:03:01:01'})-[]-(:GFE)-[]-(f:Feature)
RETURN f.term, f.rank ORDER BY f.term, f.rank

Results:

f.term	f.rank
EXON	1
EXON	2
EXON	3
EXON	4
EXON	5
EXON	6
EXON	7
EXON	8
FIVE_PRIME_UTR	1
INTRON	1
INTRON	2
INTRON	3
INTRON	4
INTRON	5
INTRON	6
INTRON	7
THREE_PRIME_UTR	1

These features each have an accession number that is unique in the context of the locus, term and rank combination and is a permanent reversible 1-to-1 mapping between the sequence and the accession number in that context.

Mapping is not permanent, reversible or 1-to-1 for these entity properties: - WHO/IMGT_HLA names and sequences - WHO/IMGT_HLA names and IMGT accession numbers - IMGT accession numbers and sequence

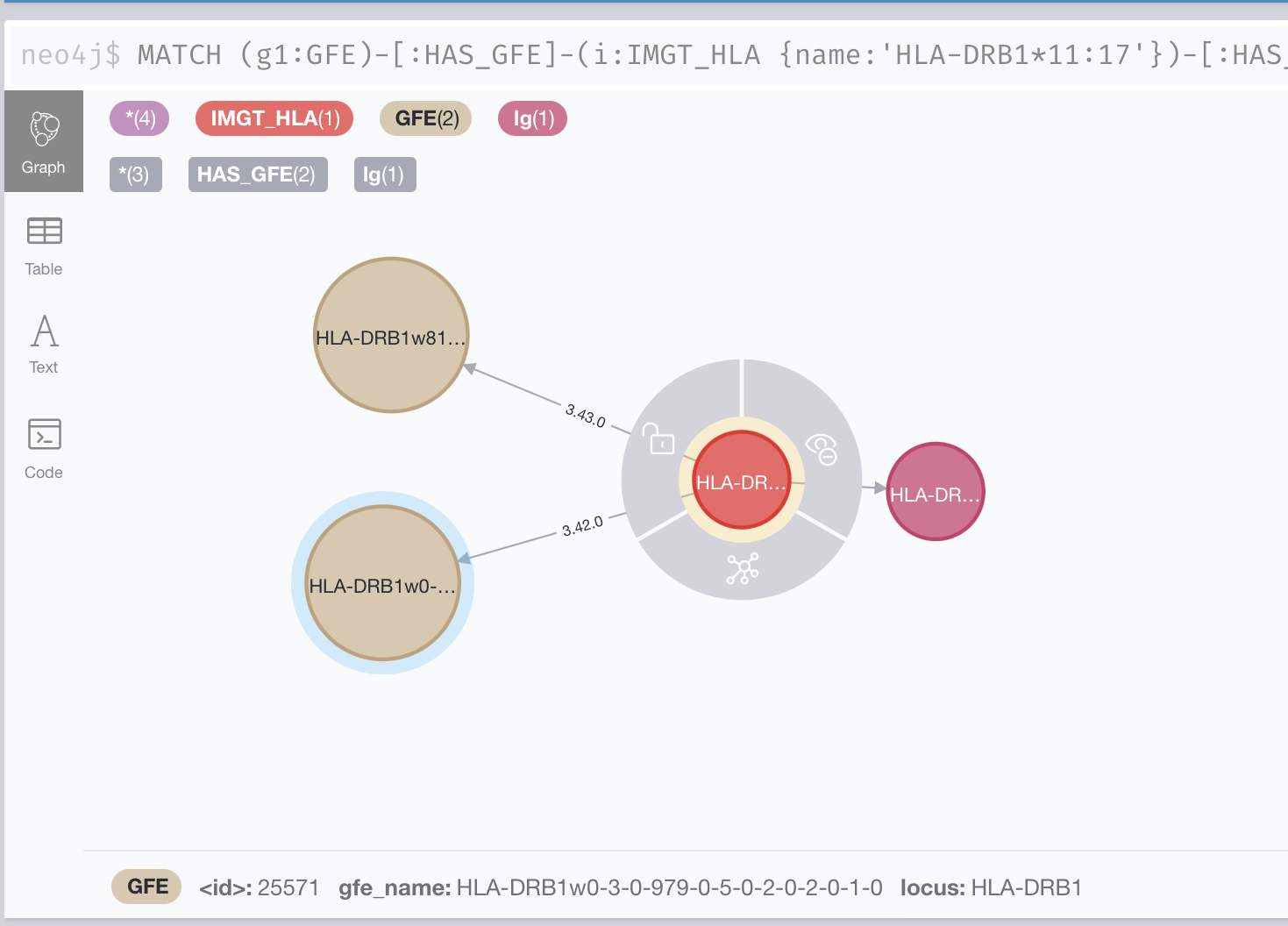

Here is a older example of a relationship between a WHO/IMGT_HLA allele (HLA-DRB1*11:17) and the corresponding GFE.

_images/157B500B-9399-4B46-9E48-628F72C869C0.jpeg

In this example, the GFE associated with this allele changed between 3.42.0 and 3.43.0

Service Configurations

Configuring is managed using JSON files, SSM Parameter Store, Secrets Manager, and shell variables. To deploy changes in these files, run the command.

make deploy.config

Graph Database

Neo4j

Custom configuration settings for Neo4j are contained in neo4j.template. This file is copied into /etc/neo4j during boot or manually. When Neo4j is restarted it will use the settings in neo4j.template to overwrite neo4j.conf. More information can be found in the documentation here at Neo4j Cloud Virtual Machines.

Important

Neo4j no longer supports the Community Edition of their AMI for EC2. The next release of gfe-db will use the Bitnami Neo4j AMI which will change this information.

Shell Scripts

Bash scripts are used for automating Neo4j configuration, loading and backup. These are stored in S3 and executed on the database instance using SSM Run Command. These are found in gfe-db/gfe-db/database/scripts/.

Cypher Scripts

Cypher scripts manage node constraints & indexes and load the data. These are found in gfe-db/gfe-db/database/neo4j/cypher/.

Data Pipeline

Input Parameters

The pipeline-input.json is stored in S3 and contains the default configuration used for automated updates.

// pipeline-input.json
{
  "align": "False",
  "kir": "False",
  "mem_profile": "False",
  "limit": ""
}

IMGT/HLA Release Versions State

The application’s state tracks which releases have been processed and added to the database. This file tracks the releases which have already been processed. If the gfe-db-invoke-pipeline function detects a valid release branch in the source data repository that is not in the releases array, it will start the pipeline for this release. Once the update is finished, the processed release is appended to the array.

// IMGTHLA-repository-state.json
{
  "timestamp": "2021-12-09 02:36:59",
  "repository_url": "https://github.com/ANHIG/IMGTHLA",
  "releases": [
    "3100",
    // ...,
    "3470"
  ]
}

Variable	Example Value	Type	Description
repository_url	https://github.com/ANHIG/IMGTHLA	string	The repository the trigger is watching
releases	[“3100”, …, “3470”]	array of strings	List of available releases. Any release added to the repository that is not in this list will trigger the pipeline build.

Logging

Logs for EC2, Lambda and Batch are collected by CloudWatch Logs.

Makefile Command Reference

To see a list of possible commands using Make, run make on the command line.

Deploy to AWS

Deploy all CloudFormation based services:

make deploy

Deploy specific stacks.

make deploy.infrastructure

make deploy.database

make deploy.pipeline

Deploy config files and scripts to S3:

make deploy.config

Load releases

Run the StepFunctions State Machine to load Neo4j:

make load.database releases=<version> align=<boolean> kir=<boolean> limit=<int>

Retrieve logs, data and configuration values

Download CSV data from S3 to ./data:

make get.data

Download logs from EC2 to ./logs:

make get.logs

Display the Neo4j Browser endpoint URL:

make get.neo4j

Tear down infrastructure

Delete all CloudFormation based services and data:

make delete

Delete specific stacks (may cause issues):

make delete.infrastructure

make delete.database

make delete.pipeline
